Weak glue bonds, warped shapes, cracked creases, skewed seams. These failures show up more often than most production teams expect, usually triggered by a substrate swap, a machine that's drifted out of calibration, a humidity shift in the workshop, or a short-run setup that got rushed.
This guide breaks down the four most common folding and gluing failures, walks through a step-by-step diagnostic process, and explains when it's smarter to fix things in-house versus calling in a packaging partner. We'll also cover how to prevent these problems from becoming a recurring line item on your waste report.
Key Takeaways
- Failures fall into four categories: adhesion, deformation, crease cracking, and misaligned seams.
- Identify the root cause first: material, adhesive, machine, or environment.
- Fixing symptoms instead of causes is the top reason failures repeat
- Recurring or design failures signal a die or prototype issue, not a machine tweak.

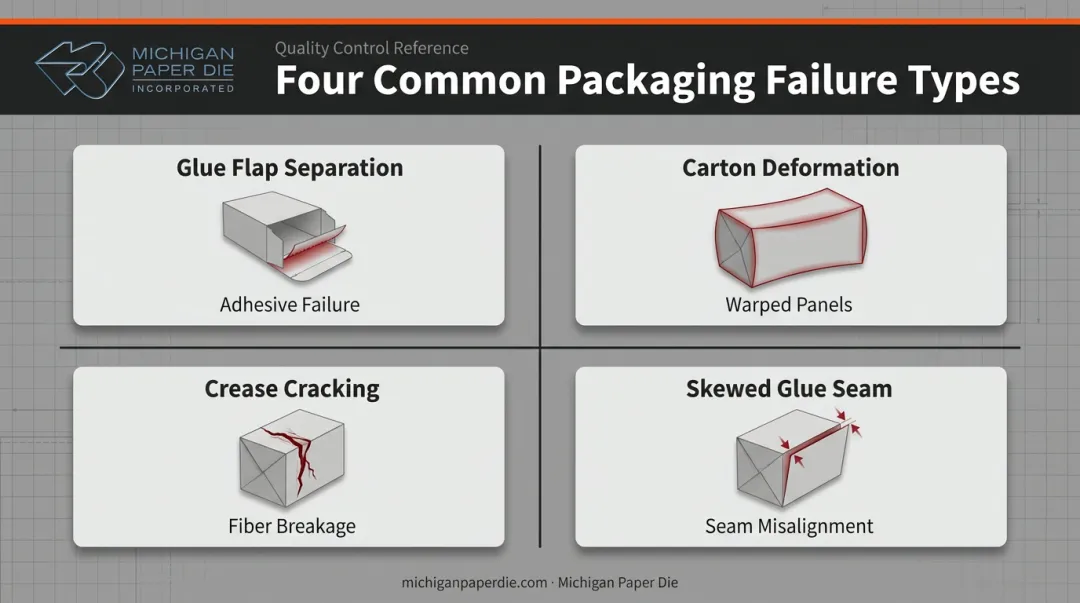

Common Folding and Gluing Failures (and Why They Happen)
Nearly every folding/gluing complaint traces back to one of four patterns. Naming the failure correctly is the first step toward fixing it, and it's the step most teams skip.
Failure 1: Glue Flap Separation or Weak Adhesion
Also called degumming, this is the most frequent complaint on any folder-gluer line.
Symptoms:
- Flaps pop open under light pressure
- Boxes come apart in transit or right after assembly
- Adhesion looks incomplete or patchy in spots
Likely cause: a mismatch between the glue and the substrate, or a coated/laminated flap surface that's physically blocking adhesive penetration. Insufficient pressure or dwell time during pressing makes it worse.
H.B. Fuller's own bonding guidance recommends checking that the glue area is free of varnish before assuming the adhesive is at fault. Testing surface energy with a dyne pen helps confirm this: a continuous line indicates sufficient surface energy, while a broken line signals adhesion trouble ahead.
Failure 2: Carton Deformation or Dimensional Warping
Symptoms:
- Boxes look skewed or off-size compared to spec
- Poor stacking or assembly accuracy on the packaging line
- Inconsistent dimensions from box to box in the same batch
Likely cause: inconsistent die-cutting precision, paper moisture fluctuation, or misaligned feeding and compression settings.
A folder-gluer plant case study at Green Bay Packaging found that surface treatment issues on polycoated and UV-lacquered stock required installing atmospheric-plasma treatment directly on the folder-gluer line. This is a reminder that deformation and adhesion problems often share the same upstream cause.
Failure 3: Crease Cracking or Poor Fold Definition
Symptoms:
- Whitened or cracked fold lines
- Boxes that won't hold their shape once assembled
- Structural weakness right at the fold
Likely cause: creasing depth that's too deep or too shallow, folding against grain direction, or uneven pressure across the fold. Creasing is meant to deliberately weaken the board along a controlled line so it folds predictably. Get the geometry wrong for that board's caliper, and cracking follows.
Failure 4: Skewed or Misaligned Glue Seam
Symptoms:
- Crooked glue seam
- Box won't square up properly
- One side panel sits noticeably higher or lower than the other
Likely cause: a crease groove that's too wide or under-pressured, mismatched left/right conveyor speeds, or folding levers that have shifted out of position.
These four failures almost always trace back to three root categories: material selection, equipment calibration, or environmental conditions. Ignore them, and the fallout compounds fast: downstream jams on the packaging line, then damaged boxes landing on a retail shelf with your client's brand on them.

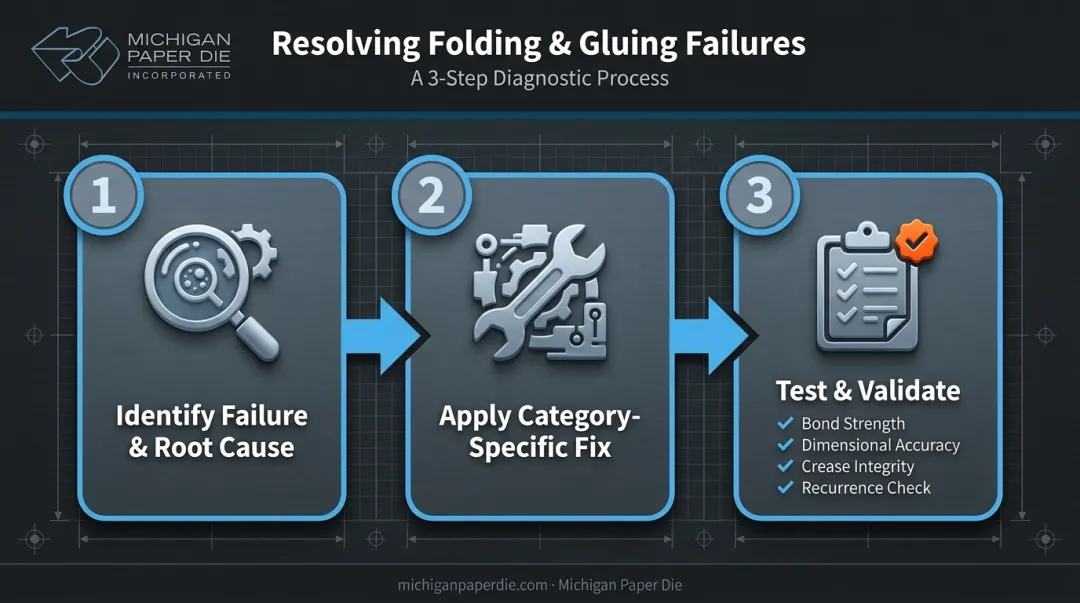

How to Fix Common Folding and Gluing Failures (Step-by-Step)
Here's the mistake most shops make: they swap the glue or adjust the machine before confirming what's actually wrong. That wastes time and often introduces a second failure on top of the first. Work through this process in order instead.
Step 1: Identify the Failure and Root Cause
Physically inspect the affected cartons and match the symptom to one of the four categories above. Then ask:
- Does it appear on every carton, or only certain batches?
- Did it show up only after storage or shipping?
- Did the problem start right after a substrate, glue, or die change?
That last question alone solves a surprising number of cases.
Sort the issue into one of four buckets: material/substrate, adhesive/application, machine setup/calibration, or environmental/operational.
Before touching the machine, rule out the boring stuff: an inconsistent paper batch, or a workshop that swung 15 degrees overnight. Over-correcting a machine for a problem that's actually sitting in the material is how good calibration gets ruined chasing a phantom issue.
Step 2: Fix the Carton Based on the Identified Problem
The fix is completely different depending on the category. This is where most rework hours disappear if the wrong fix gets applied first.
If it's a material or substrate issue:
- Common cause: coated, laminated, or UV-varnished flap surfaces repelling adhesive
- Fix: knock out the coating on the glue flap area at the design/print stage, or switch to an adhesive formulated for low-surface-energy boards
- Before scaling: run a peel test on the treated sample flap
If it's an adhesive or application issue:
- Common cause: wrong glue type (cold glue, hot-melt, or PUR) for the run speed or substrate, or incorrect glue viscosity/quantity
- Fix: match the adhesive to the substrate and machine speed, then adjust glue quantity, pressure, and dwell time
- Also recalibrate glue nozzles or wheels: clogging and uneven flow cause more "weak bond" complaints than the adhesive formula itself
If it's a machine setup or calibration issue:
- Signs: inconsistent crease groove width or pressure, misaligned folding levers, mismatched left/right conveyor speeds
- Fix: recalibrate the feeder and folding sections, set crease depth/pressure to match board thickness, re-sync conveyor speeds
- Change one variable at a time. Adjusting three settings simultaneously means you'll never know which one actually fixed it
If it's an environmental or operational issue:
- Conditions: workshop temperature below the adhesive's recommended range, or high humidity affecting paper moisture and glue cure
- Fix: keep workshop conditions stable and check your adhesive's technical datasheet for its specific temperature and humidity range
- Let cartons rest and cure before shipping, especially in colder months
Iggesund manufactures its paperboard to match a converting environment of 50% relative humidity at 20°C; running well outside that range invites warping and cure problems.
Step 3: Test and Validate the Fix
Don't declare victory yet. Run a test batch at normal production speed and check:
- Bond strength using a peel or lap-shear test
- Dimensional accuracy and squareness against the original spec
- Crease integrity: fold under stress and look for cracking or whitening
- The next full run for recurrence before you close the ticket
Fix In-House or Call a Professional Packaging Partner?
Not every failure needs an outside call. Some do.
Scenario 1: An isolated glue or machine-setting issue on one run. Retrain the operator, adjust pressure and glue settings, then run a small test batch. This is in-house territory.
Scenario 2: Recurring carton deformation tied to inconsistent die-cutting. This is a die problem, and fixing it means correcting the die itself before the carton ever reaches the folding equipment.
Michigan Paper Die builds steel-rule dies in-house on CNC equipment, using CAD software (Cimek) paired with an automatic rule-bending machine. That precision solves the deformation at the source, rather than forcing the folding equipment to compensate for it batch after batch.
Scenario 3: A new carton design repeatedly failing at the crease or glue flap. Get a prototype review before scaling into production.
Michigan Paper Die builds a physical prototype on an in-house sample-making table for every new project, then checks it against laser proofs and client specs before die construction begins.
Every completed job also ships with a Quality Control Report, documenting notes, mockups, and procedures used. Problems caught during production feed into the next run instead of repeating.
Scenario 4: High-volume runs needing consistent adhesion at speed. This calls for equipment built to handle it. Michigan Paper Die runs four dedicated gluing machines:
- Straight-line in-line systems for permanent bonds on side seam, tuck, crash lock, and partition cartons
- Two fugitive glue systems for tipping and temporary-bond work
Splitting work across lines matched to the job keeps quality consistent at a volume a single in-house machine often can't sustain.

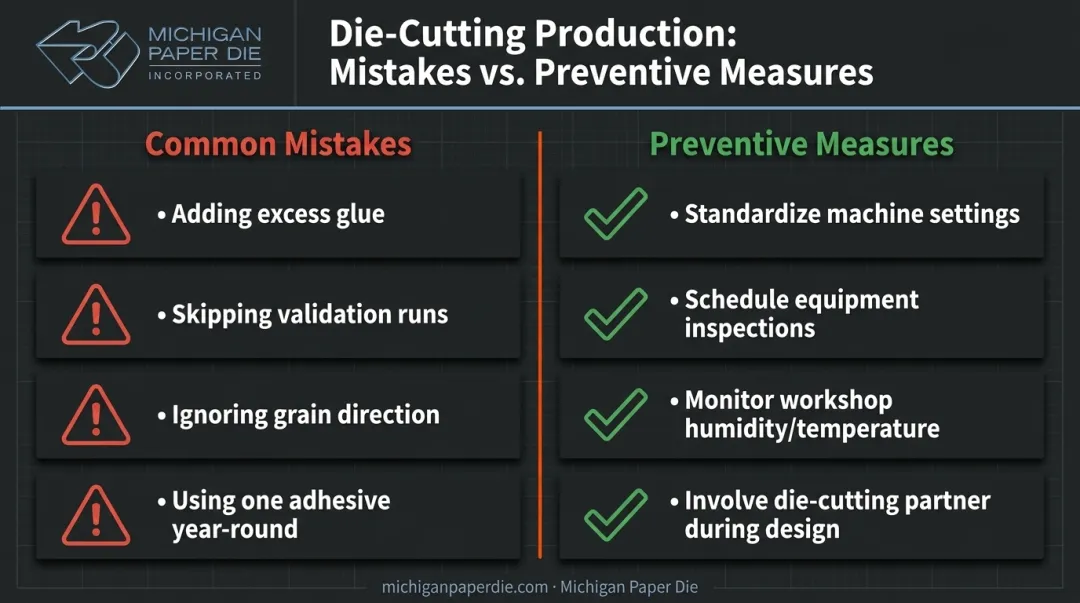

Common Mistakes to Avoid and Preventive Measures
Common Mistakes
- Adding more glue to fix a weak bond, instead of checking for a coating or surface-energy problem first
- Skipping the validation run after adjusting machine settings
- Ignoring grain direction when setting crease lines
- Using one adhesive formula year-round without adjusting for seasonal temperature and humidity swings
Preventive Measures
- Standardize and log machine settings (carrier positions, tooling, pressure) per carton style to cut makeready time and repeat errors
- Schedule regular inspection of feeder belts, conveyor rollers, and glue nozzles
- Track workshop temperature and humidity with a visible gauge and keep them consistent
- Involve a die-cutting partner during the design stage — prototype fixes cost far less than correcting flap, crease, or structural issues after a full production run
Conclusion
Weak bonds, warped boxes, cracked creases, skewed seams — nearly all of it is fixable once you identify the actual root cause instead of just patching the symptom. Repeated machine tweaking without a diagnosis is what keeps a failure coming back run after run.
When the problem traces back to die precision or the design itself, that's the signal to bring in a converter who builds tooling in-house rather than repeatedly adjusting the folder-gluer to compensate. Michigan Paper Die has built folding cartons and steel-rule dies in Detroit for over 40 years. Every project, from prototype to final Quality Control Report, is built around catching these problems before they hit the production floor.
Frequently Asked Questions
What is the most common cause of glue flap failure in folding cartons?
Mismatched adhesive-to-substrate selection is the leading cause, closely followed by coated or laminated flap surfaces blocking adhesive penetration. Insufficient press pressure or dwell time is usually a secondary factor.
Can a cracked crease line be repaired, or does the carton need to be scrapped?
A cracked crease on a finished carton generally can't be repaired — the blank has to be scrapped. Fix the root cause (creasing depth, grain direction, or pressure) before running the next batch.
How do I know if a folding/gluing failure is a machine issue or a material issue?
Test the same substrate on a known-good machine setting, and separately, run a known-good substrate through the current machine setting. Whichever combination still fails tells you where the problem actually lives.
What glue type works best for coated or laminated cartons?
Hot-melt or specialty adhesives formulated for low-surface-energy boards typically perform best. Knocking out the coating on the glue flap area at the design stage is another common fix.
How can I reduce carton deformation on short production runs?
Standardized machine settings, consistent die-cutting quality, and controlled paper moisture are the three biggest levers on short runs, where there's little room to correct drift mid-batch.
When should I get a packaging or die-cutting expert involved instead of troubleshooting in-house?
Recurring deformation, crease failures tied to a new design, or a jump to high-volume production are all signals to bring in a partner like Michigan Paper Die for prototype review and precision die construction before the problem multiplies.
